Cantilevered Truss Bridge Kits
Canyon Diablo

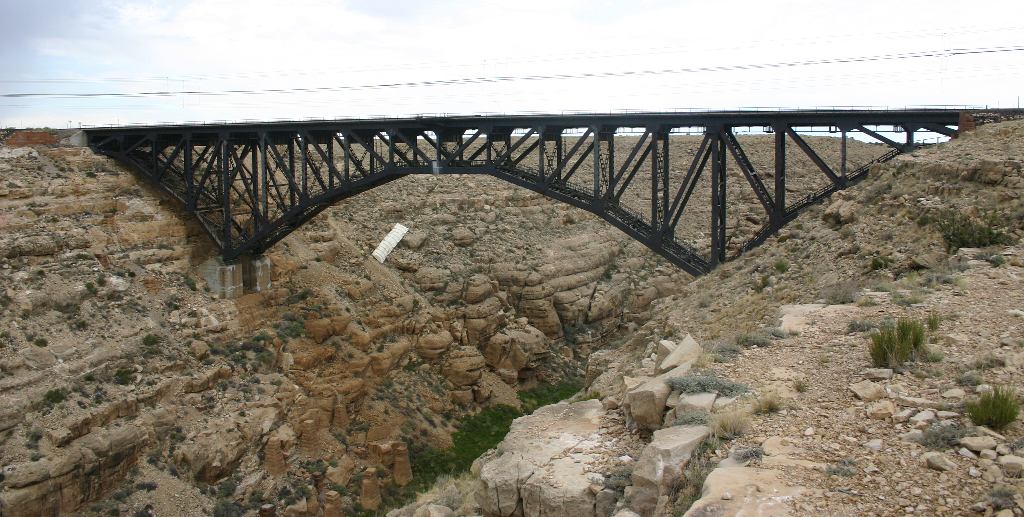

544ft of ballasted deck on a Cantilevered Truss that is as beautiful as it is impressive. This bridge is on the ATSF mainline between Flagstaff and Winslow Arizona. Built by the Kansas City Structural Steel Co in 1946, the double track ballasted deck truss sees continuous traffic crossing at full speed.

All of the details are included with this kit; Upper Maintenance Walkways under the roadbed with hanging Walkways out to the Top Chord, Lower Maintenance Stairways the entire length of the bottom of the bridge with Walkways out to the Bottom Chord, Safety Railings on the Bottom Chord, Multi-layered Gusset Plates, Bridge Shoes and more. For Santa Fe fans, this bridge will be a must.

Dimensions are:
Prototype Model
# Panels Length (ft) Height Length

18 544 6.58in 40.75in

Price

1200901 (N) $1950.00
